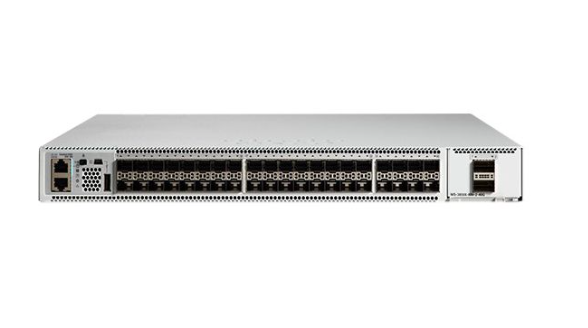

Shop Cisco C9500-24Q-A Catalyst 24 Ports Rack Mountable Network Advantage
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability.
Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud.
The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
A subscription license is required with this product.
| Product Description | Cisco Catalyst 9500 – Network Advantage – switch – 24 ports – managed – rack-mountable |
| Device Type | Switch – 24 ports – L3 – managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 40 Gigabit Ethernet |
| Ports | 24 x 40 Gigabit QSFP |
| Power Over Ethernet (PoE) | UPOE |
| Performance | Switching capacity (full duplex): 960 Gbps ¦ Forwarding rate: 1440 Mpps |
| Capacity | Routing table entries: 64000 ¦ Indirect IPv4 routes: 64000 ¦ Host IPv4 routes: 32000 ¦ Indirect IPv6 routes: 32000 ¦ Host IPv6 routes: 16000 ¦ Multicast scale: 48000 ¦ QoS ACL scale: 18000 ¦ Security ACL scale: 18000 ¦ FNF entries: 512000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF |
| Features | DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, Control plane protection (CoPP), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba |
| Power | AC 120/230 V (50 – 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 21.5 in x 1.7 in |
| Weight | 25.75 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
MPN: C9500-24Q-A
