Description

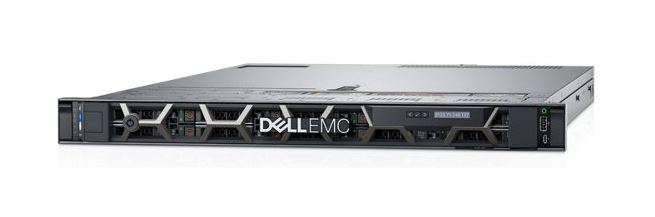

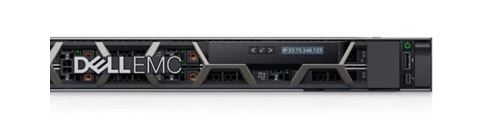

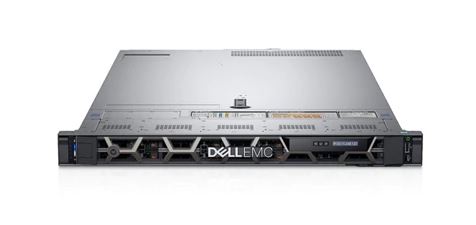

Dell PowerEdge R440 Rack Server – Entry Level

Processor: Custom Configured – Up to two Intel Xeon Scalable processors, up to 22 cores per processor

Operating System: No Operating System

Memory: Custom Configured – 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 512GB max – Supports registered ECC DDR4 DIMMs only

RAID: No RAID with Embedded SATA, Cabled Chassis

Hard Drive: Custom Configured

Drive Bays: Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 48TB or up to 4 x 3.5 SAS/SATA HDD max 40TB
Optional DVD-ROM, DVD+RW

Embedded Management: IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional

Fans: Hot plug power supplies with full redundancy option

Warranty: 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5×10 NBD On-site

Chassis Configuration:

4×3.5
728.23 mm Front Bezel to Rear PSU Handle
714.58 mm Front plate (no bezel) to Rear PSU Handle

8×2.5
677.45 mm Front Bezel to Rear PSU Handle
676.92 mm Front plate (no bezel) to Rear PSU Handle

10×2.5
728.23 mm Front Bezel to Rear PSU Handle
714.58 mm Front plate (no bezel) to Rear PSU Handle

Slots: 2 x PCIe 3.0 slots + 1 slot for internal storage

Storage Controller Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140

Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA

Network Controller: 2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE

Power: Gold 450W, Platinum 550W

Security: TPM 1.2/2.0 optional – Cryptographically signed firmware – Secure Boot – System Lockdown – Secure erase

Availability: Hot-swap 3.5” front access hard drives; Hot-swap 2.5” front access hard drives; Hot-plug power supply units

Chassis: 1U Rack Server
